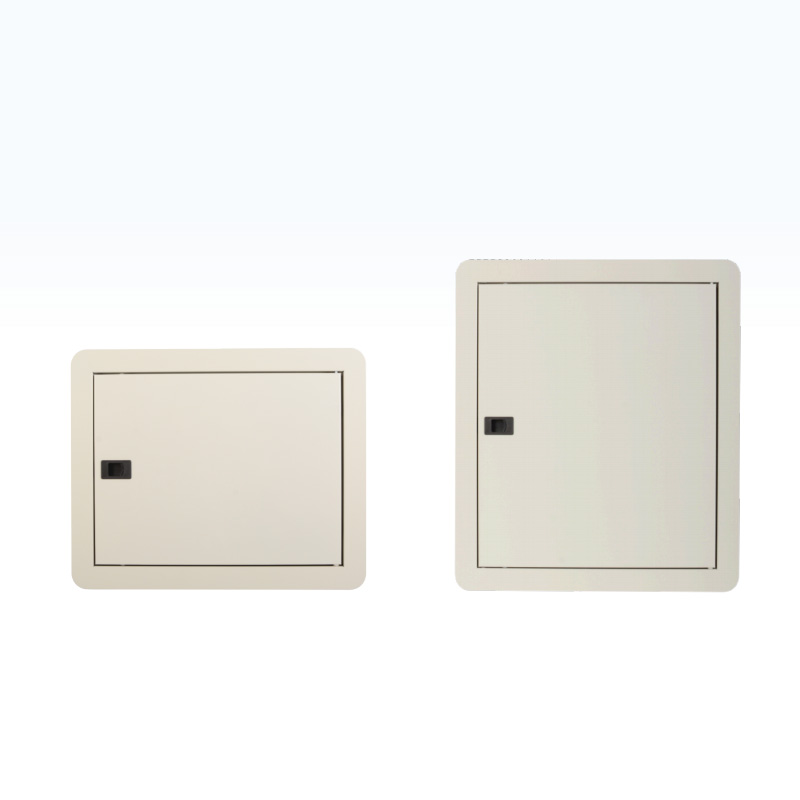

Features of products
●Removable prepunched top and bottom gland plates
●1.2mm thickness sheet steel with Epoxy powdercoating in RAL 9002
●Suitable for modular incomers and outgoings only
●Accessories like key lock,joining kits,etc.
●Boards can be assembled vertically
Specification Data
| Designation | No.of rows | No.of Modues | Cat.Ref.Surface mounted | Cat.Ref.Flush mounted |
| DINRail Distribution boards 16 module | 1 | 16 | DR16S | DR16F |
| 2 | 32 | DR32S | DR32F | |
| 3 | 48 | DR48S | DR48F | |
| 4 | 64 | DR64S | DR64F | |
| 5 | 80 | DR80S | DR80F | |
| 6 | 96 | DR96S | DR96F | |
| DIN Rail Distribution boards 24 module | 4 | 96 | DR424S | DR424F |
| 5 | 120 | DR524S | DR524F | |
| 6 | 144 | DR624S | DR624F |
| Designation | Cat.Ref | |
| Accessories | Joining kits for surface boards (16mod DB) | JK01SK |
| Joining kits for flush boards (16mod DB) | JK01FK | |
| 1 mod blanking strip | P032H | |
| Key lock | VZ794N |
